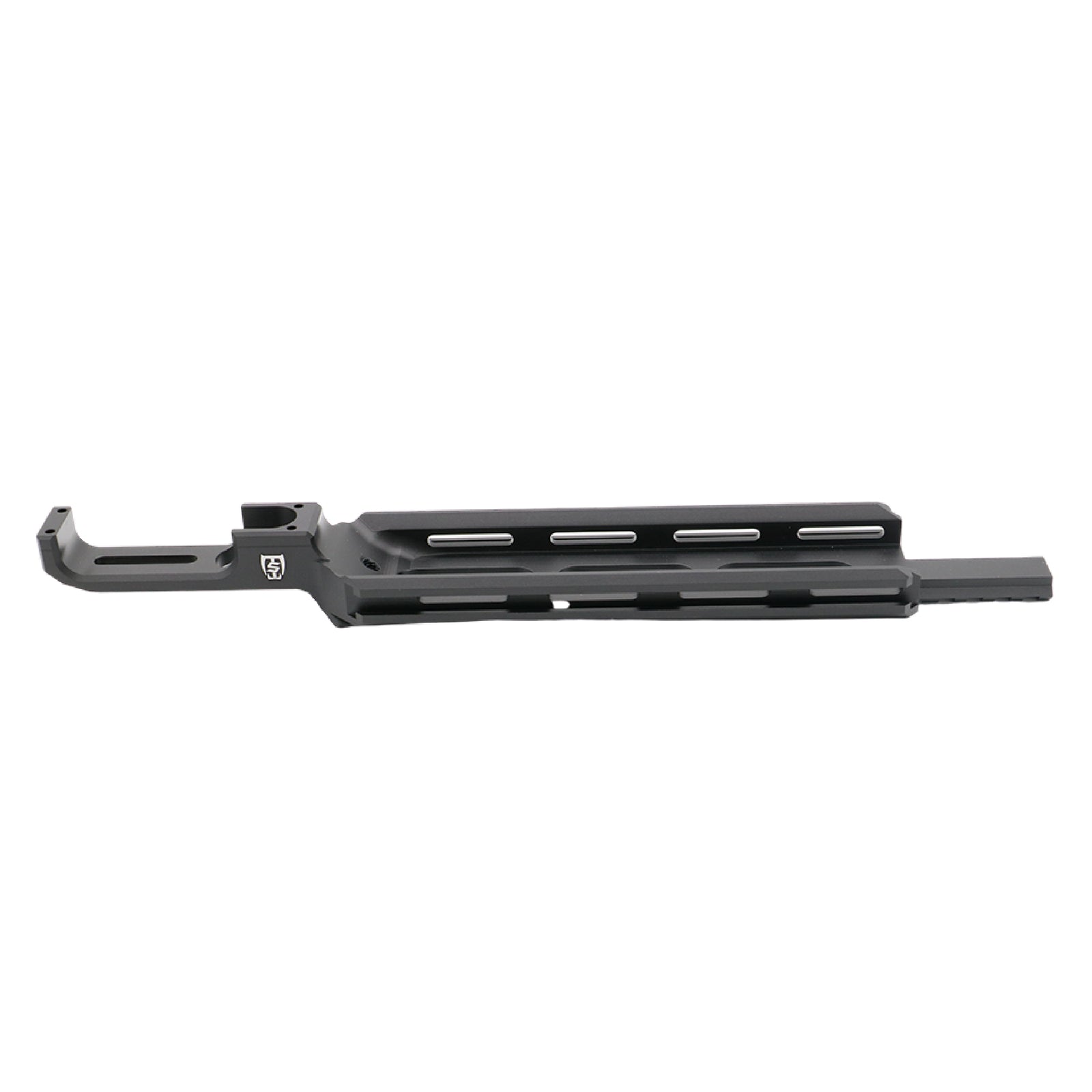

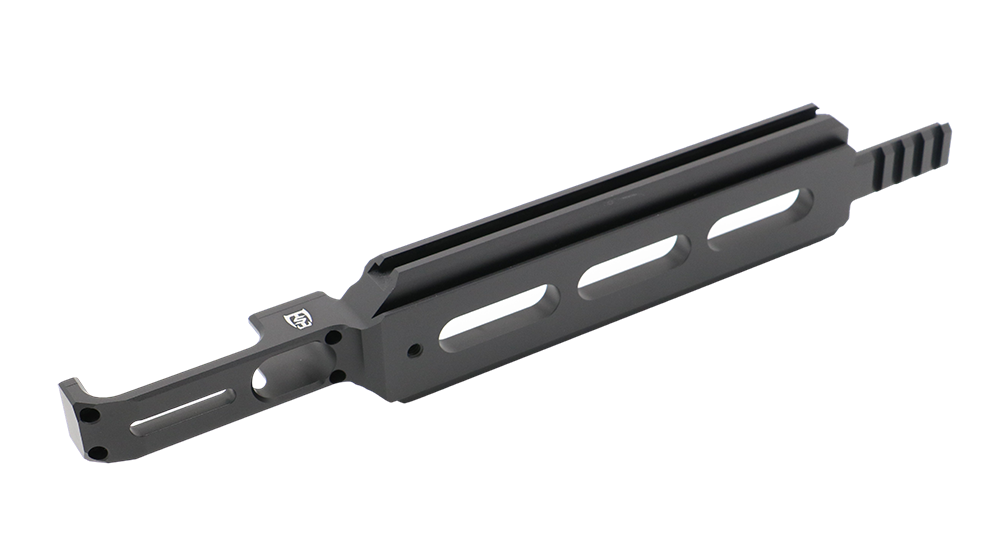

The Arca Rail 2 is our second-generation bottom rail for the FX Impact, and it is the most versatile option if you run a mix of Arca and Picatinny gear. The bottom is Arca Swiss, the front end is Picatinny, and there is a 1/4-20 thread for a standard camera tripod adapter, so most supports you already own will attach to it.
It works well for shooters who move between the bench, a tripod and offhand shooting and don't want to change rails to do it.
What changed from the first Arca rail
We added T-slots on both sides of the rail so you can mount a flashlight or a laser on the side without a separate mount. We also rounded the edges, which makes the rail more comfortable when you shoot offhand with your support hand wrapped around it.
The rail has a hard black anodize finish, and it ships with an extended dust fill cap so the fill port stays covered with the longer rail installed. Saber Tactical has worked with airgunners and precision shooters throughout the sport, and our products have been tested and used in real-world hunting and competition precision shooting.
Specs
| SKU |
ST0022 |
| Rail type |
Arca Swiss with a Picatinny section at the end |
| Side slots |
T-slots on both sides |
| Tripod thread |
1/4-20 |
| Material |
6061-T6 aluminum |
| Finish |
Hard black anodize |
| Included |
Extended dust fill cap |
Installing and setting it up
Install it in place of the factory bottom rail and fit the extended dust fill cap at the same time. For tripod use, the 1/4-20 thread accepts a camera-style adapter, and the Arca section clamps directly into any Arca clamp.
Common questions
What's the difference between the Arca Rail 2 and the Arca 3 Low Profile?
The Arca Rail 2 has a Picatinny section at the end, side T-slots and a 1/4-20 tripod thread. The Arca 3 Low Profile ST0043 is Arca along its full length, sits closer to the bottle and uses M-LOK slots instead of T-slots.
Can I mount a light or laser on it?
Yes, the T-slots on both sides were added so you can attach accessories such as flashlights and lasers.
Does it come with the dust cap?
Yes, an extended dust fill cap is included.
Is there a compact version?
Yes, the FX Impact Compact Arca Rail ST0023 is made for the Impact with the short 300cc bottle, and it has an Arca Swiss rail with a Picatinny section at the end and 1/4-20 tripod threads.
